Description

Intelligent, highly efficient network power protection is ideal for servers, point-of-sale, routers, switches, hubs and more. SmartConnect, the first cloud-enabled UPS management system for distributed IT, features a simple web interface for system administrators and non-tech users alike, with clear notifications in plain language. USB and Serial connectivity provides easy and convenient remote accessibility and network manageability. High online efficiency, with reduced utility costs and less heat generation in standard operating mode, is taken to the next level with the onboard, patent-pending Green Mode, which allows you to bypass unused electrical components to achieve an even higher level of operating efficiency without sacrificing protection. Boost and trim automatic voltage regulation (AVR) corrects low and high voltage conditions without accessing internal power. Hot-swappable lithium-ion battery provides pure sine-wave output and is capable of cold-starts when utility power is out. Intuitive LCD interface with LED indicators and audible alarms deliver clear status information and feature easy-to-use navigation keys to keep operation simple. Resettable circuit breakers enable quick recovery from overload events. Temperature-compensated charging prolongs battery life by regulating the charge voltage based on the battery's temperature. Protection Type: Power; System VA: 1,500 VA; Backup Time at Half Load: 12.8 min @ 675 W; Automatic Voltage Regulation (AVR): Yes.

Features

Intelligent, highly efficient network power protection.
Ideal for servers, point-of-sale, routers, switches, hubs and more.
SmartConnect, the first cloud-enabled UPS management system for distributed IT.
Easy and convenient remote accessibilitynetwork manageable with USB and Serial connectivity.
High online efficiency with Green Mode.
Boost and trim automatic voltage regulation (AVR).
Hot-swappable lithium-ion battery with pure sine-wave output and cold-start capability.
Intuitive LCD interface with LED indicators and audible alarms.
Resettable circuit breakers.

Specifications

Automatic Voltage Regulation (AVR)	Yes
Backup Run Time	28.4 min
Backup Systems Alarm(s)	Audible
Backup Time at Full Load	5 min @ 1,350 W
Backup Time at Half Load	12.8 min @ 675 W
Battery Recharge Time	2 h
Color(s)	Silver/Black
Compliance Standards	CSA C22.2 NO. 107.3; FCC Part 15 Class A; NOM; REACH Compliant; RoHS Compliant; UL 1778; UL 1973
Connected Equipment Guarantee/Warranty	Lifetime $150,000
Connector/Port/Interface	Serial; SmartSlot; USB
Cord Length	8 ft
Depth	17.25"
Diagnostics/Alarm/Status Light	Alarm; LED
Disclaimer Statement	Run Time based on a load of 400 W.
Global Product Type	Backup Systems
Height	5.14"
Housing Material	Metal
Input Frequency	50-60 Hz
Jacks/Ports	APC SmartConnect; RJ45; Serial; USB
Joules Of Surge Protection	680 J

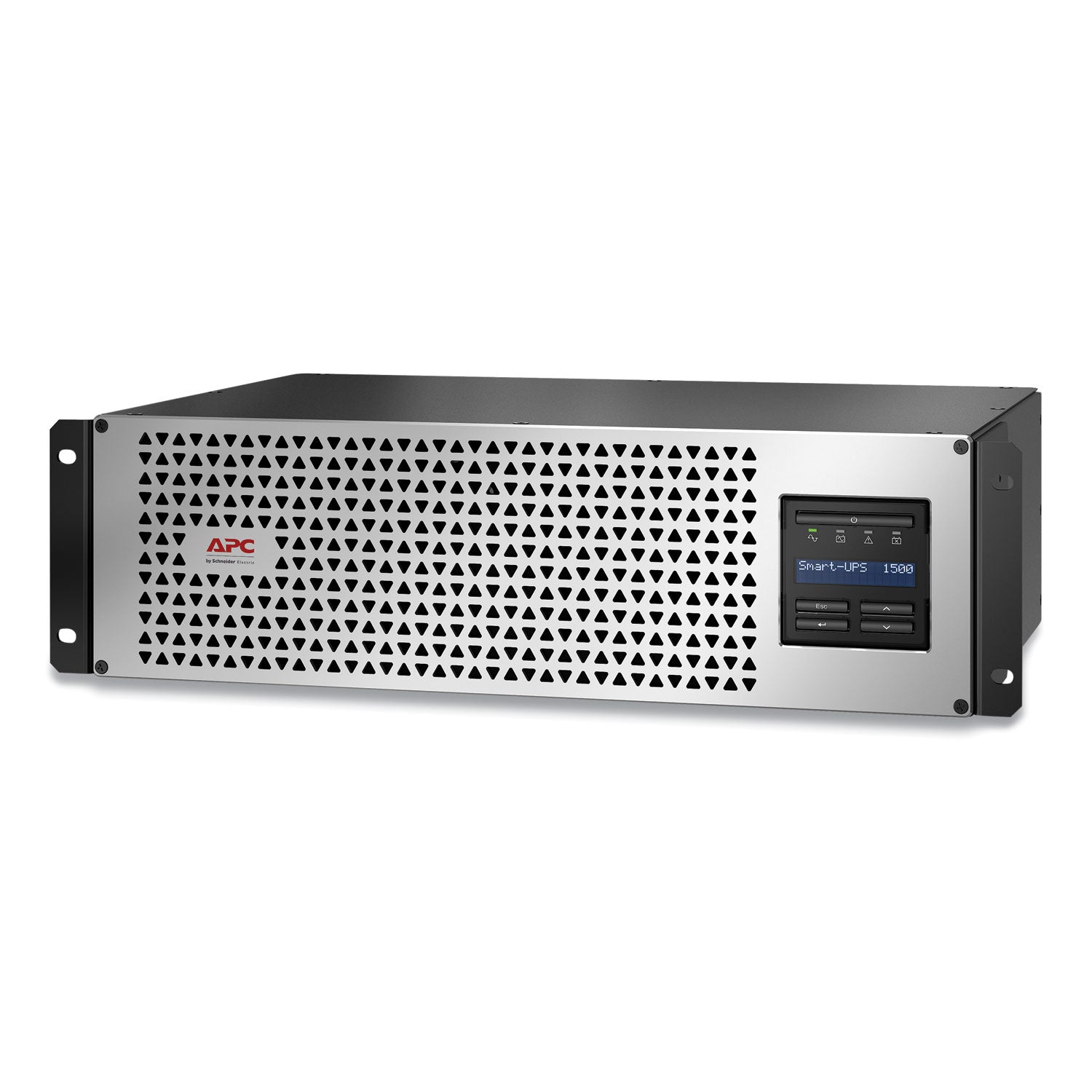

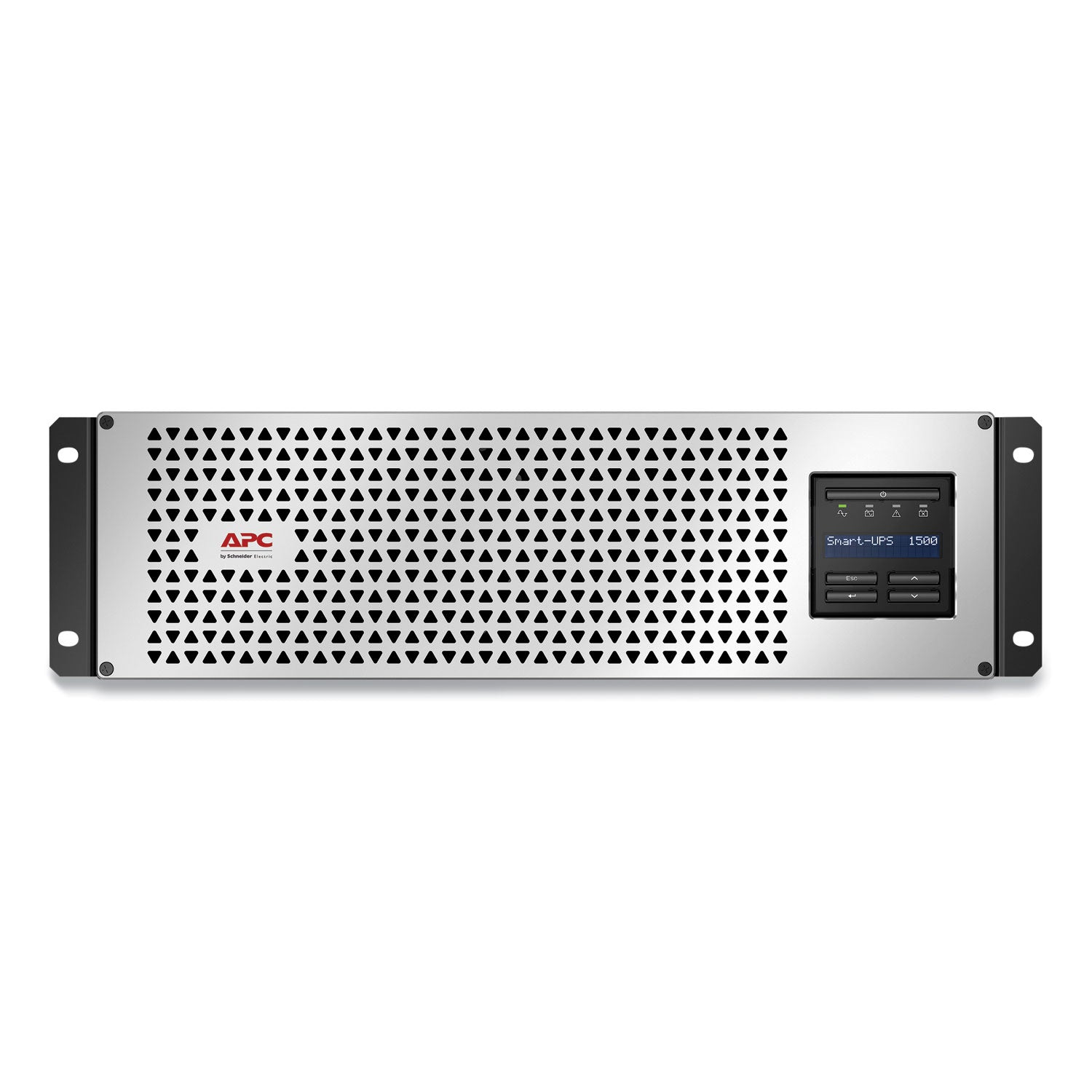

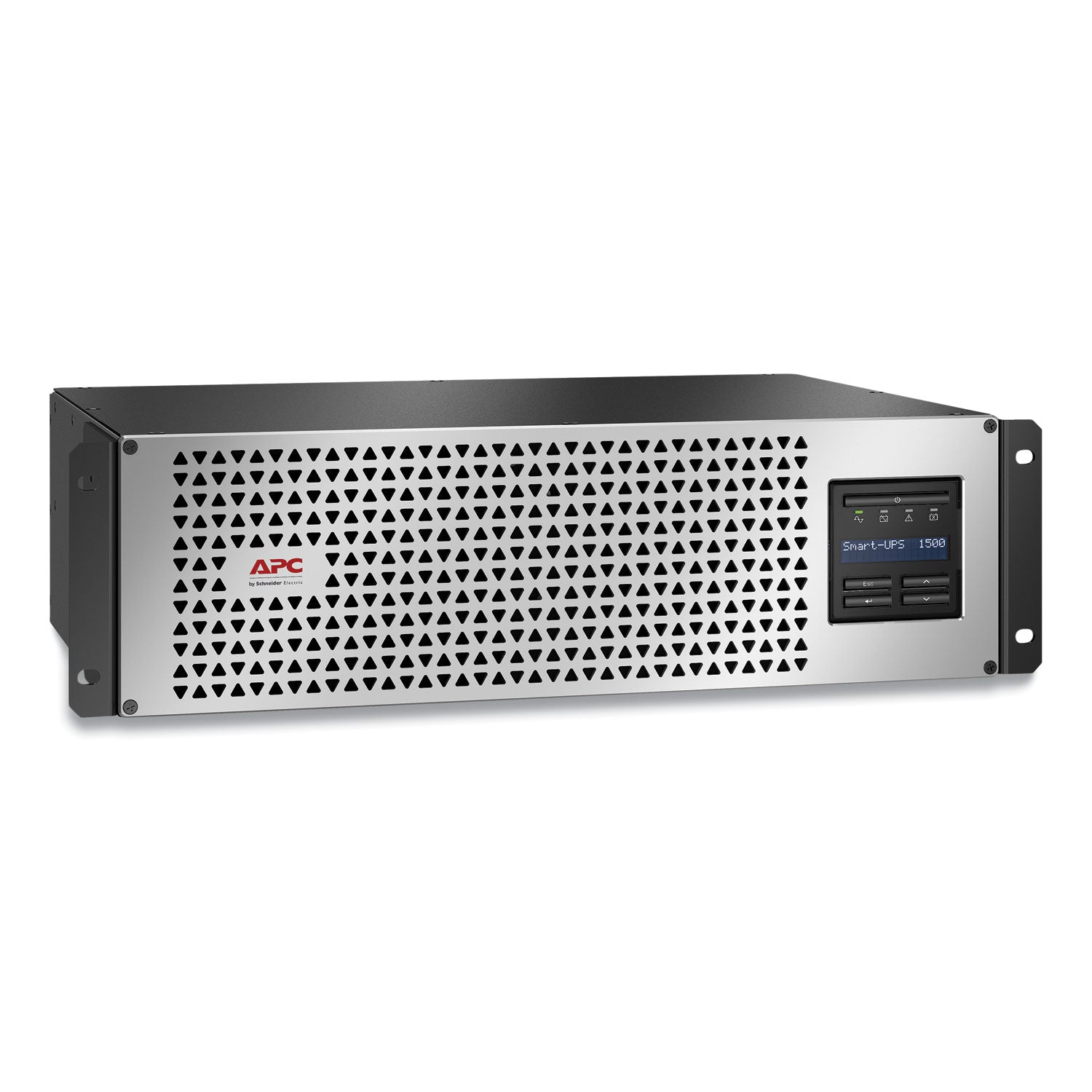

Model Name/Number	Smart-UPS® SMTL1500RM3UC
Noise Protection	EMI/RFI Noise Suppression

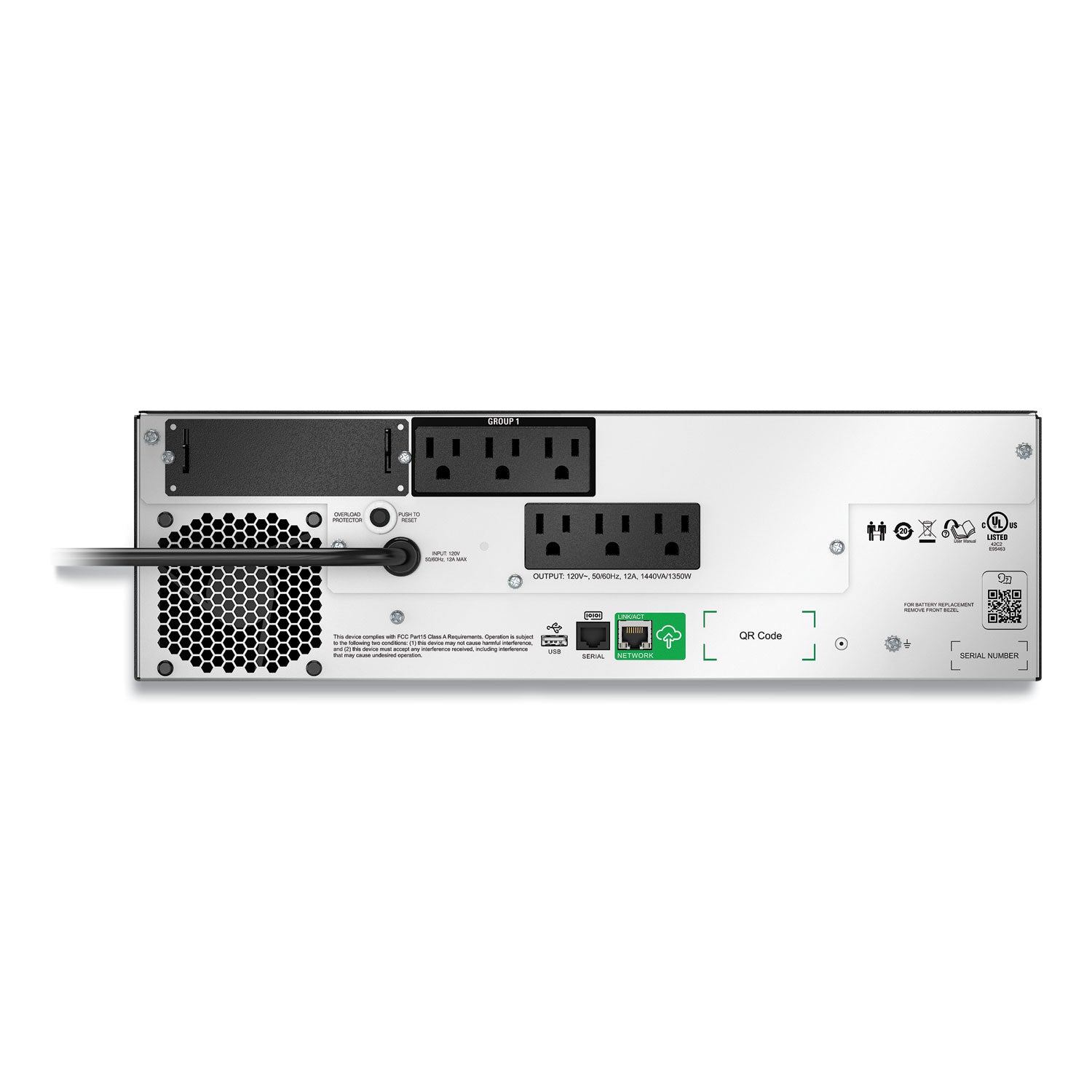

Number of Outlets	6
Number of Outlets/Type	6 UPS/Surge
Package Includes	(1) Software CD; (1) Documentation CD; (1) Set of Rack-Mount Support Rails; (1) Smart-UPS® RS232 Signaling Cable; (1) USB Cable
Post-Consumer Recycled Content Percent	0%
Pre-Consumer Recycled Content Percent	0%
Product Biodegradability in Days	0
Protection Type	Power
React Time	6-10 ms
System VA	1,500 VA
Total Recycled Content Percent	0%
Weight	43 lbs
Width	11.89"
