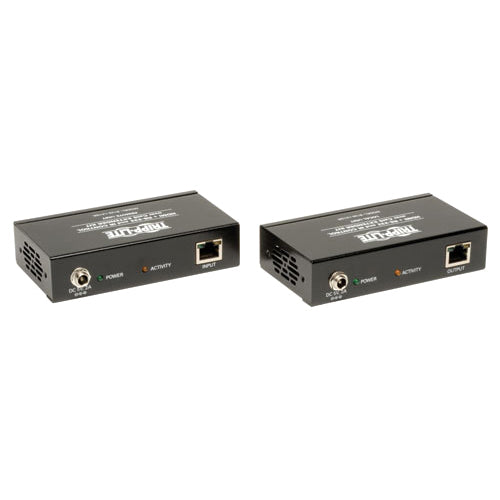

Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328' with a single Cat6a cable, up to 230' with a 24 AWG solid-wire Cat6 cable, and up to 150' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328', use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices, such as touch-screen displays or scanners, at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP.
Features
- Plug-and-play technology connects immediately without software or drivers
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Compatible with all operating systems and HDMI video sources
- Perfect for digital signs, trade-show presentations and more
- Perfect for digital signs, trade-show presentations and more
- Compatible with all operating systems and HDMI video sources
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
Specifications
| Brand Name |
Tripp Lite |
| Connectivity Technology |
Wired |
| Country of Origin |
Taiwan |
| Environmental Certification |
RoHS |
| Form Factor |
Pole-mountable |
| Form Factor |
Rack-mountable |
| Form Factor |
Wall Mountable |
| Graphics Modes |
4K |
| HDMI In |
Yes |
| HDMI Out |
Yes |
| Limited Warranty |
1 Year |
| Manufacturer |
Tripp Lite by Eaton |
| Manufacturer Part Number |
B126-1A1SR |
| Manufacturer Website Address |
https://tripplite.eaton.com/ |
| Maximum Operating Distance |
328 ft |
| Maximum Video Resolution |
3840 x 2160 |
| Network (RJ-45) |
Yes |
| Number of HDMI Inputs |
1 |
| Number of HDMI Outputs |
1 |
| Number of Network (RJ-45) Ports |
2 |
| Package Contents |

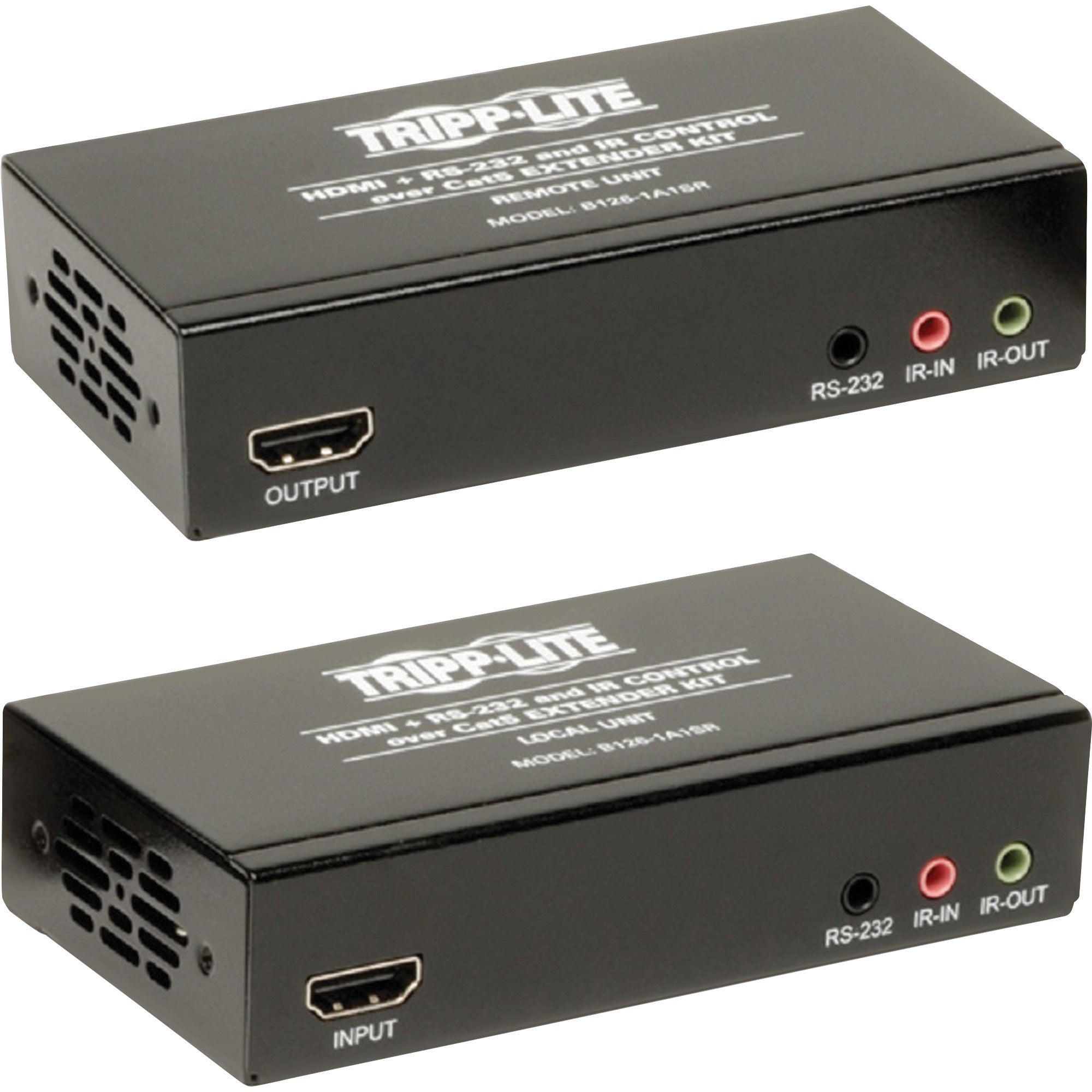

- Local Transmitter and Remote Receiver Units
- 2 x Sets of IR-IN Cables
- 2 x Sets of IR-OUT Cables
- 3.5 mm Male-to-DB9-Female Adapter Cable
- 3.5 mm Male-to-DB9-Male Adapter Cable
- 2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
- 2 x Sets of Mounting Hardware Kits
- Owner's Manual
|
| Product Model |
B126-1A1SR |
| Product Name |
HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender Kit |
| Product Type |
Video Extender Transmitter/Receiver |
| Receiver Depth |
11.30" |
| Receiver Height |
2" |
| Receiver Width |
6.20" |
| TAA Compliant |
Yes |
| Transmitter Depth |
11.30" |
| Transmitter Height |
2" |
| Transmitter Width |
6.20" |
| Twisted Pair Cable Standard |
Category 6 |
