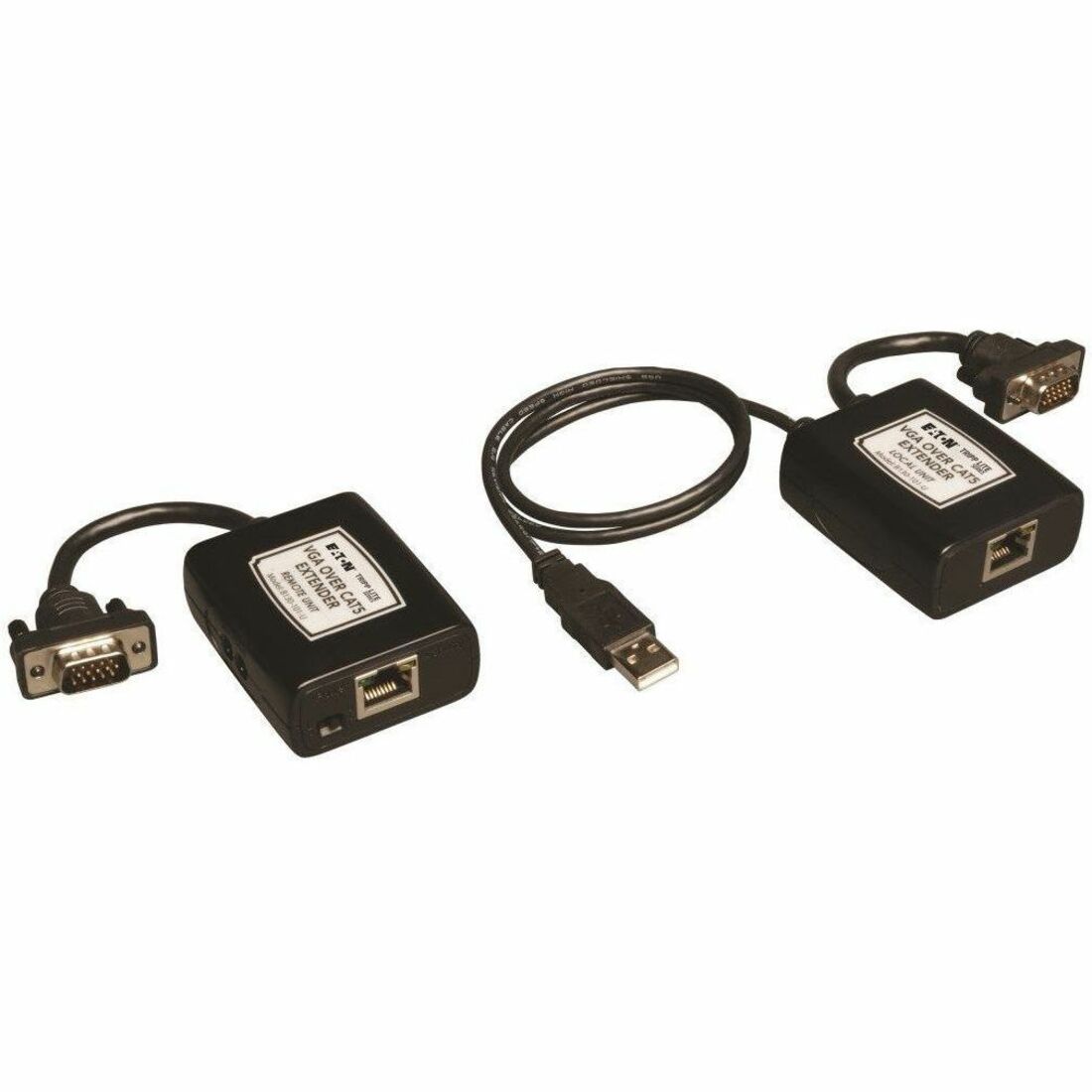

This VGA over Cat5 extender kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350', or a 1024 x 768 (60Hz) signal up to 500', when using 24Awg, Solid Wire Cat5e/6 cable (sold separately). Extender draws power directly from a USB connection at the computer to eliminate the need for an external AC adapter. Receiver unit includes Gain adjustment for brightness and darkness control, and Equalization adjustment for sharp, clear images. VGA dongles allow for direct attachment to video equipment without requiring a VGA cable. Extender kit is perfect for digital signage applications, classroom or auditorium projectors, and more.
Features
- Easy-to-use design allows your device to be connected up to 500' away
- USB power eliminates need to use external AC adapter
- Built-in VGA dongles remove need for additional VGA cables

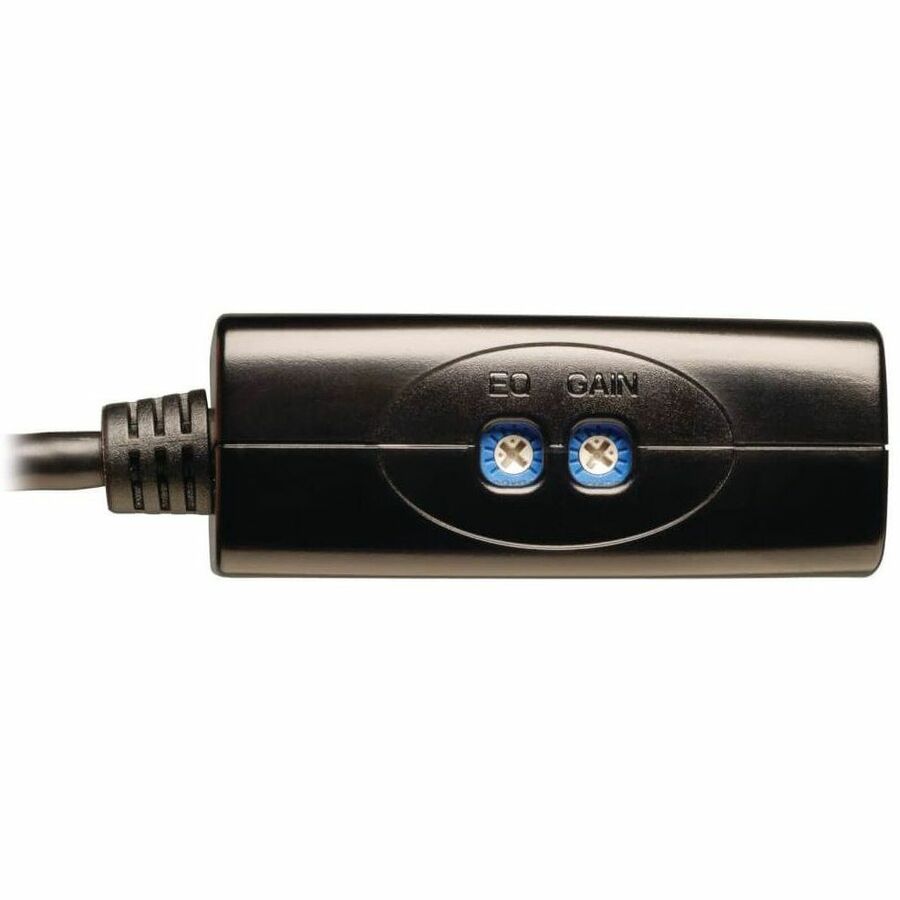

- Equalization and Gain controls ensure clear, sharp images
- Perfect for digital signage, classroom projectors and more
- Built-in VGA dongles remove need for additional VGA cables
- USB power eliminates need to use external AC adapter
- Easy-to-use design allows your device to be connected up to 500' away
Specifications
Brand Name |
Tripp Lite |
Connectivity Technology |
Wired |
Country of Origin |
Taiwan |
Limited Warranty |
1 Year |
Manufacturer |
Tripp Lite by Eaton |
Manufacturer Part Number |
B130-101-U |
Manufacturer Website Address |
https://tripplite.eaton.com/ |
Maximum Operating Distance |
500 ft |
Maximum Video Resolution |
1920 x 1440 |
Media Type Supported |
Twisted Pair |
Network (RJ-45) |
Yes |
Number of Input Devices Supported |
1 |
Number of Network (RJ-45) Ports |
2 |
Number of Output Devices Supported |
1 |
Number of USB Ports |
1 |
Number of VGA Inputs |
1 |
Number of VGA Outputs |
1 |

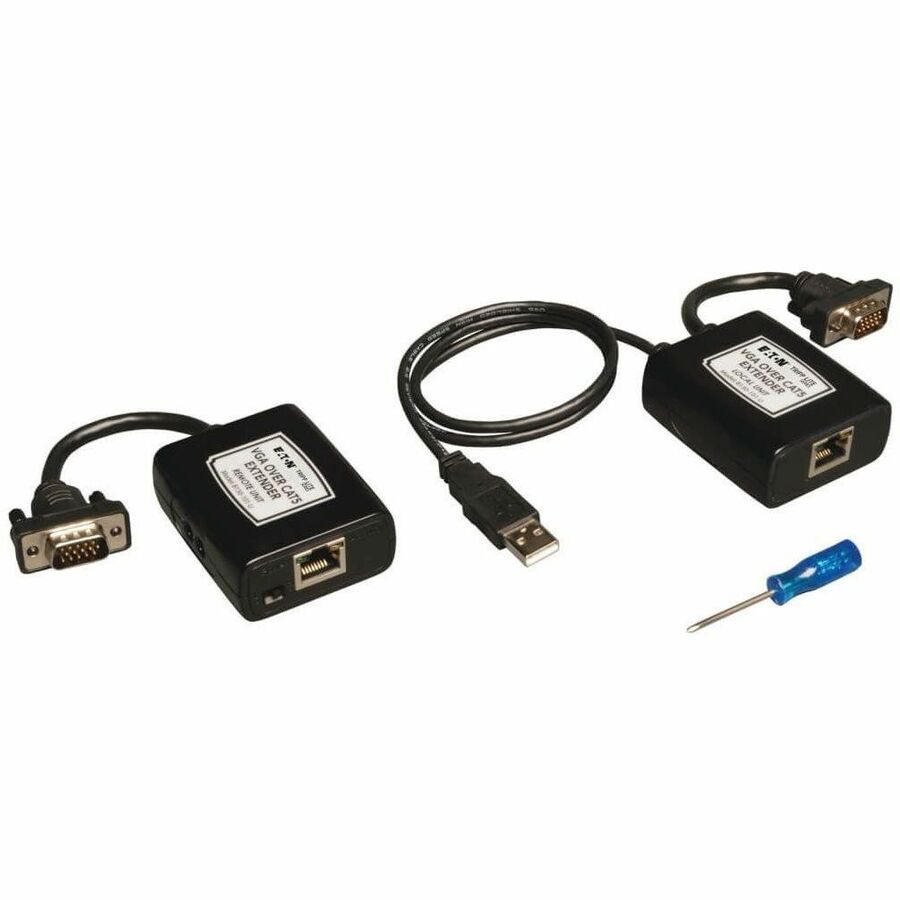

Package Contents |
- VGA Over Cat5 Transmitter
- VGA Over Cat5 Receiver
- EQ And GAIN Adjustment Screwdriver
|
Product Model |
B130-101-U |
Product Name |
B130-101-U TAA / GSA Video Extender/Console |
Product Type |
Video Extender Transmitter/Receiver |
TAA Compliant |
Yes |
Twisted Pair Cable Standard |
Category 6 |
USB |
Yes |
VGA In |
Yes |
VGA Out |
Yes |
