Description

Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers and more. Internal UPS circuits support entry-level PCs for up to 40 minutes or individual VCR/DVR components for as long as 2 hours during power failures. Prevents data loss, viewing interruptions and loss of programming. AVR circuits regulate brownouts as low as 89v back to usable levels without consuming battery power. Includes four battery-supported/surge-protected outlets, plus four additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown. Includes cable. HID-compliant USB interface enables full integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Offers three-minute battery runtime with full load of 650VA/350W and 12 minute with half load of 325VA/175W.

Features

AVR circuits regulate brownouts back to usable levels without battery power
HID-compliant USB interface allows use with built-in power management

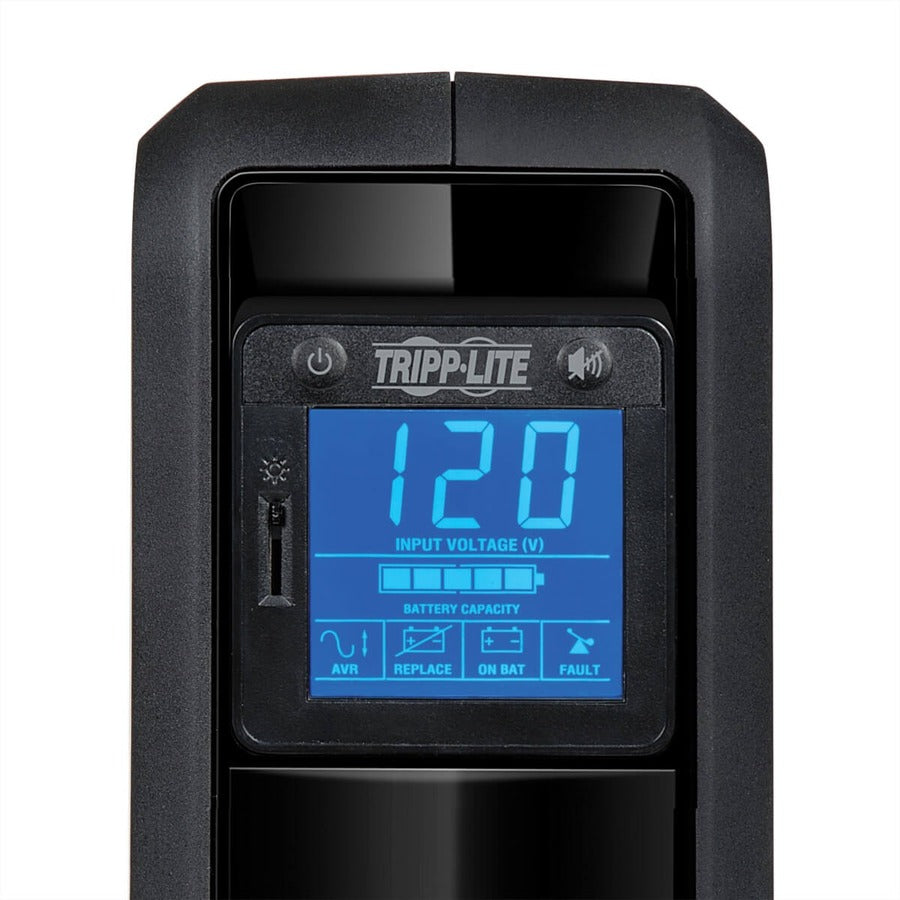

LCD includes dimmer and can be rotated for easy viewing in any application
Versatile cabinet adapts to tower format or rackmount shelf format
Perfect for computers, home entertainment systems and media centers
Perfect for computers, home entertainment systems and media centers
Versatile cabinet adapts to tower format or rackmount shelf format
LCD includes dimmer and can be rotated for easy viewing in any application
HID-compliant USB interface allows use with built-in power management

Specifications

Backup/Run Time (Full Load)	3.20 Minute
Backup/Run Time (Half Load)	12 Minute
Brand Name	Tripp Lite
Cord Length	6 ft
Country of Origin	China
Depth	7.2"
Height	3.7"
Input Voltage	110 V AC
Limited Warranty	3 Year
Load Capacity (VA)	650 VA
Load Capacity	650 VA/350 W
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	OMNI650LCD
Manufacturer Website Address	https://tripplite.eaton.com/
Maximum Operating Temperature	122°F (50°C)
Output Voltage	120 V AC
Package Contents	OmniSmart 650 VA Digital UPS OMNI650LCD Digital UPS System Manual with warranty information
Packaged Quantity	1 Each
Plug/Connector Type	NEMA 5-15P
Product Family	OmniSmart
Product Line	OmniSmart
Product Model	OMNI900LCD
Product Name	OmniSmart 650 VA Digital UPS
Product Type	Line-interactive UPS
Receptacle Type	NEMA 5-15R
Status Indicators	Input Voltage : Shows actual incoming voltage in real time Battery Charge : Shows approximate charge available on the battery Automatic Voltage Regulation (AVR) : Illuminates to indicate the UPS is automatically regulating incoming voltage without draining battery power Battery Recharge/Replace : Illuminates to indicate the UPS batteries need to be recharged or replaced (following a self-test) Battery Backup : Illuminates to indicate that the UPS is supplying battery power to connected equipment Output Load Level : Illuminates when the electrical load of connected equipment exceeds the capacity of the UPS
Surge Energy Rating	480 J
Typical Battery Recharge Time	8 Hour
USB	Yes
Waveform Type	Pulse-width Modulated Sine Wave
Weight (Approximate)	14.60 lb
Width	12"
